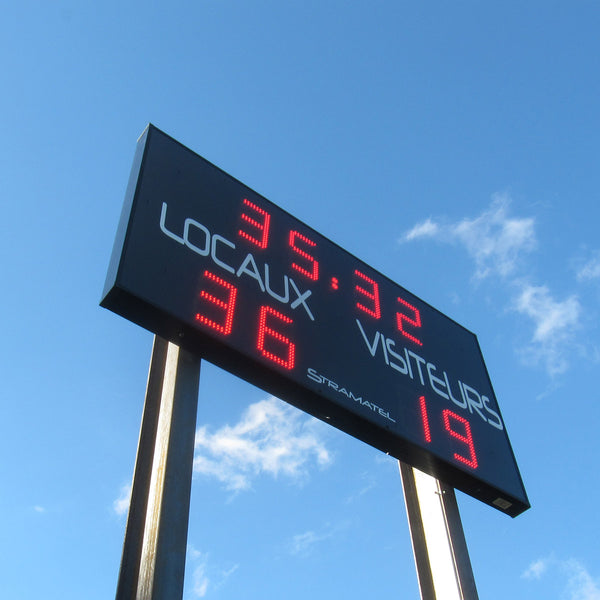

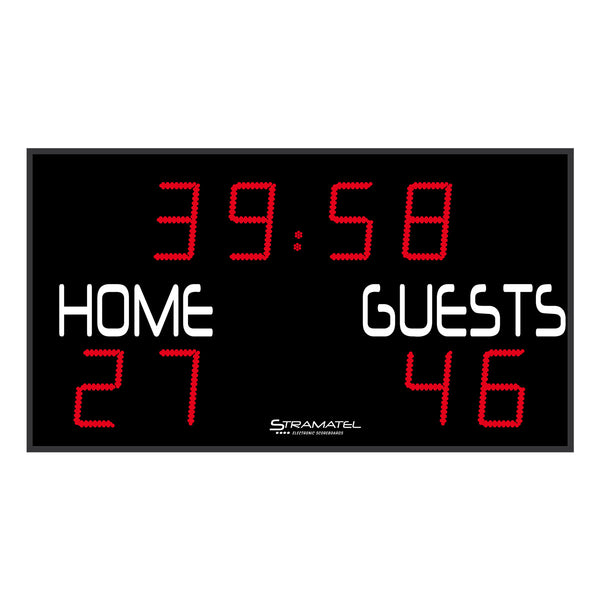

Stramatel 452 FRB Outdoor Scoreboard

The Stramatel 452 FRB Outdoor Scoreboard is suitable to display match information for football, rugby, GAA, field hockey, etc.

With 25 cm digits, the score and the timer on this model are readable at 120 m even in direct sunlight. The brightness is adjustable from the wireless console.

This product is weather proof to be used in any outdoor pitch.

What's included

• 1 scoreboard (made of 1 module)
• 1 control console (Android compatible)
• 1 carrying case for control console
• 1 mains cable
• Operating and installation instructions
• (Smartphone not included)

Technical description

• Use : Outdoor
• Transmission : Radio (868 MHz) or cable
• Readability : 120m, angle >160°
• Dimensions : 1800 x 1000 x 90 mm
• Weight : 34 kg
• Power supply : 230V / 50-60Hz Power consumed: 66 VA
• Protection : unbreakable mat polycarbonate front face (DIN 18032-3)
• Mains cable (supplied) : 5m (socket not supplied) – Type: 230V, 3G, 0.75 mm²
• Cable controlled : for cable controlled models or radio controlled models with cable set - Junction box + 50m transmission cable (scoreboard / junction box) - Type : phone cable 2 pairs 6/10th + 10m transmission cable DIN/DIN
• (junction box / console)
• Installation : on I-Beams(adjustable fixing) or wall-m
• Brightness : adjustable from the control console

Display functions

• Score : 2 x 2 red LED digits (25 cm)
• Timer / Rest period : 4 red LED digits (25 cm) + 2 blinking points
• Day time : when the scoreboard is not in use
• (switched off at night)

Control consoles

• 1 console : (340 x 175 x 60 mm) with LCD-screen with 2 lanes of 20 characters (9mm high)
• 1 charger (radio) : Hold the console in charge when not in use (Autonomy max. 16h)
• USB Port : For program update or connect PC Keyboard
• Programme : 3 sport disciplines: Soccer, Rugby, Field Hockey
• Multilingual programme
• Stramatel Outisport App : possibility to control main functions of the scoreboards with an Android smartphone / tablet and to share match information by SMS, email (Free Application on Google Play).

Options

• TV Interface (RS 485) : Data transmission for TV broadcasting
• Sound Interface : Connection with sound system - Horn sound amplifier
• DCF or GPS Antenna : For accurate time synchronisation
• Cable set : Cable mode for radio controlled scoreboard
• Advertising panels : Black panels (advertising stickers on demand)
